BFilePanel
|
BFilePanelDerived from: none
Declared in: be/storage/FilePanel.h
Library: libtracker.so
Summary: more...

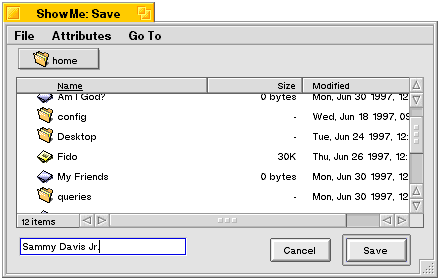

BFilePanel knows how to create and display an "Open File" or "Save File" panel, and provides the means for filtering and responding to the user's actions on the panel. The Save Panel looks like this:
The Open Panel looks pretty much the same, but without the text view in the lower left corner.
To create and use a BFilePanel, follow these steps:1. Construct a BFilePanel object in response to the user's request (most likely, a click on an "Open" or "Save"/"Save As" menu item). When you construct the panel, you have to specify its "mode" (Open or Save).
2. Fine-tune the panel by telling it which directory to display, whether it allows multiple selection, whether it can open a directory, which target it should send notifications to, and so on. (Most of these parameters can also be set in the constructor.)
3. Invoke Show() on the panel, and then wait for the user to confirm a selection (or close the panel).
4. Receive a message. When the user confirms a selection (or cancels the panel), the panel disappears and a notification message (Open, Save, or Cancel) is sent to the panel's target. The message identifies the confirmed file(s).
5. Delete the BFilePanel object...or don't. When the user closes a file panel, the object is not automatically deleted; you have to do it yourself. But you may not want to. If you don't delete the panel, you can simply call Show() the next time you want to display it; the state from the previous invocation (the panel's size and location, the directory it points to) is remembered.
The BFilePanel constructor has about two thousand arguments. They all have default values, and most of the parameters that they control can be set through individual functions. The following sections list and describe the constructor arguments and tell you if there's an analogous function.
Argument Default Function file_panel_mode mode B_OPEN_PANEL none There are two file panel modes: B_OPEN_PANEL and B_SAVE_PANEL. You've got to make up your mind in the constructor.
Argument Default Function BMessenger *target be_app_messenger SetTarget() The target represents the BLooper/BHandler that will receive the Open, Save, and Cancel messages.
Argument Default Function entry_ref *panel_directory cwd SetPanelDirectory() When a panel is first displayed, it has to show the contents of some directory; this is called the "panel directory." The panel directory defaults to the current working directory.
Argument Default Function uint32 node_flavors B_FILE_NODE none
This parameter applies to Open panels only.
There are three node flavors: B_FILE_NODE, B_DIRECTORY_NODE, and B_SYMLINK_NODE. You combine these constants to declare the flavors that you want the user to be able to confirm. Before describing the flavor settings, keep this in mind...
- Double-clicking a directory in the file list always enters the directory, regardless of the panel's flavor setting.
If you understand the following, you can save yourself some reading:
- If your app wants to open files only, then stick with the default (B_FILE_NODE); the user will be able to confirm files and symlinks to files. If you want directories as well (for example, a compression app might want to work on files and directories) then add in B_DIRECTORY_NODE (symlinks to directories are okay, as well). If you only want directories (unusual, but possible), then leave B_FILE_NODE out of it.
If you're not convinced, read on:
- If the setting includes B_FILE_NODE and the user selects and confirms a file or a symlink to a file, the file (or symlink) is delivered to your target. If it doesn't include B_FILE_NODE and the user selects a file (or symlink to a file), the Open button is disabled.
- If the setting includes B_DIRECTORY_NODE and the user selects and Opens (i.e. clicks the Open button) a directory or a symlink to a directory, the directory (or symlink) is delivered to your target. If it doesn't include B_DIRECTORY_NODE and the user Opens a directory (or symlink to a directory), the directory is entered (the contents of the directory are displayed in the file list).
- If the setting includes B_SYMLINK_NODE and the user confirms a symlink, the symlink is delivered to your target. If it doesn't include B_SYMLINK_NODE and the user selects symlink, the panel's response depends on the inclusion of the other two flavors. Note that including B_SYMLINK_NODE is an odd thing to do—it only makes sense if it's not combined with either of the other two flavors, and even then it doesn't make much sense.
As implied by the here, when the user confirms a symlink (regardless of the flavor setting), you always receive the symlink itself in the Open message—you don't get the file or directory it points to.
Argument Default Function bool allow_multiple_selection true none This parameter determines whether the user is allowed to select more than one item at a time. Save panels should set this to false.
Argument Default Function BMessage *message a default BMessage SetMessage() By default, the format of the message that's sent to your target when the user confirms or cancels is defined by the file panel (the default formats are defined later). You can override the default by specifying your own BMessage. The BMessage is copied by the BFilePanel object. You can change this message using the SetMessage() function.
Argument Default Function BRefFilter *filter NULL SetRefFilter() When panel directory changes (this includes when the panel is constructed, and when the panel's Refresh() function is called), or when a new entry is added to the existing directory, the new entries are passed, one-by-one, to the panel's BRefFilter object through a BRefFilter hook function. In your implementation of the hook function, you can reject individual entries; rejected entries won't be displayed in the file list.
By default, a file panel has no BRefFilter. To supply one, you have to subclass BRefFilter (in order to implement the hook function) and pass it in.
- Note that the ref filter isn't asked to "re-review" the entry list when the file panel is Show()'d after being hidden.
Argument Default Function bool modal false none A modal file panel can't be closed; to get rid of the panel, the user has to click a button. By default, file panels are not modal.
Argument Default Function bool hide_when_done true SetHideWhenDone() By default, a file panel is hidden when the user confirms or Cancels. If you set hide_when_done to false, the panel remains on the screen. Clicking the panel's close box always hides the panel
When the user confirms a selection or cancels a file panel, a BMessage is constructed and sent to the target of the BFilePanel object. By default, the target is be_app_messenger. You can specify a different target (as a BMessenger) through the BFilePanel constructor, or through the SetTarget() function.The format of the BMessage that the target receives depends on whether the user is opening, saving, or canceling.
If the target is be_app_messenger and the what field is B_REFS_RECEIVED, the BMessage shows up in the RefsReceived() function. Otherwise it's sent to the target's MessageReceived().
- By default, the what field is B_REFS_RECEIVED. You can override the default by supplying your own BMessage (SetMessage()).
- The "refs" field (type B_REF_TYPE) contains entry_ref structures, one for each entry that the user has confirmed.
- The message may contain other fields, as copied from the BMessage you (optionally) supplied. The data in these fields won't be changed.
Keep in mind that the refs that you receive through this message point to the literal entries that the user confirmed. In other words, if the confirmed selection is a symlink to a file, you'll receive a ref for the symlink, not the file (and similarly for a link to a directory). It's up to you to turn the symlink into a file (which is probably what you want).
If you want a BEntry object, all you have to do is pass true as the traverse argument to BEntry's constructor or SetTo():
/* We'll assume that 'ref' was just plucked from an open notification. */
BEntry entry(ref, true);
You don't even have to check to see if the ref is a symlink.
If you want to turn a symlink ref into a ref to the pointed-to file, just add this line:
entry.GetRef(&ref);
Save notifications are always sent to the target's MessageReceived() function.
- By default, the what field is B_SAVE_REQUESTED. You can override the default by supplying your own BMessage (SetMessage()).
- The "directory" field (type B_REF_TYPE) contain a single entry_ref structure that points to the directory in which the user has requested the entry be saved (in other words, the ref refers to the panel directory).
- The "name" field (B_STRING_TYPE) is the text the user typed in the Save Panel's text view.
- The message may contain other fields, as copied from the BMessage you (optionally) supplied. The data in these fields won't be changed.
Note that if the user confirms a name that collides with an existing file, an alert is automatically displayed. The user can then back out of the confirmation and return to the Save Panel, or clobber the existing file. The save notification is sent after (and only if) the user agrees to clobber the file.
The file isn't clobbered by the system; it's up to you (as the receiver of the save notification) to do the dirty work.
A cancel notification is sent whenever the file panel is hidden. This includes the Cancel button being clicked, the panel being closed, and the panel being hidden after an open or a save (given that the panel is in hide-when-done mode).Cancel notifications are always sent to the target's MessageReceived() function.
- The what field is always B_CANCEL, even if you supplied your own BMessage.
- The "old_what" field (B_UINT32_TYPE) records the "previous" what value. This is only useful (and dependable) if you supplied your own BMessage: The what from your message is moved to the "old_what" field. If you didn't supply a BMessage, you should ignore this field (it could contain garbage).
- The "source" (B_POINTER_TYPE) is a pointer to the BFilePanel object that was closed.
- The message may contain other fields, as copied from the BMessage you (optionally) supplied. The data in these fields won't be changed.
Keep in mind that when a file panel is closed—regardless of how it's closed—the BFilePanel object is not destroyed. It's merely hidden.
There are two ways you can modify the look of your BFilePanel object.
- You can do some simple text twiddling by calling the label- and text-setting functions SetButtonLabel() and SetSaveText().
- If you need to really change the look, you can get a handle on the panel's BWindow and BView objects in order to move them around, add your own, or whatever. You get the window through the Window() function. Finding specific views within the window is described below.

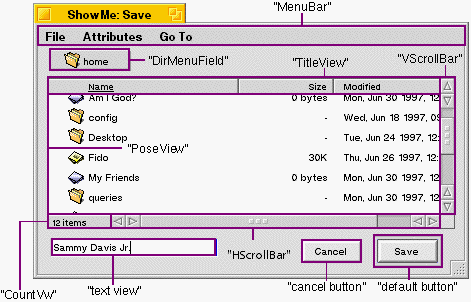

The views in the panel are (mostly) named, as listed and shown below
- "MenuBar" is the window's menu bar.
- "DirMenuField" is the path popup.
- "TitleView" is the bar that holds the attribute titles.
- "PoseView" is the scrollable list of files.
- "VScrollBar" and "HScrollBar" are the vertical and horizontal scroll bars.
- "CountVw" is the item counter to the left of the horizontal scroll bar.
- "text view" is where the user types a file name (Save Panel only).
- "default button" is the Save or Open button.
- "cancel button" is the Cancel button.
The background view doesn't have a name, but it's always the first in the window's list of views:
BView *background = filepanel->Window()->ChildAt(0);
The other views can be found by name, reckoning off of the background view. For example, here we get the "PoseView" view (the view that contains the file list):
BView *files = background->FindView("PoseView");
You can also display Open and Save Panels through the global C functions run_open_panel() and run_save_panel() (which are declared in FilePanel.h). The functions create BFilePanel objects using the default constructor settings (modulo the file_panel_mode, of course).The C functions create a new file panel each time they're called, and delete the panel when the user is finished with it.
SelectionChanged()
Invoked whenever the user changes the set of selected entries.
WasHidden()
Invoked just after the file panel is hidden because of the user's actions (it's not invoked if you call Hide() yourself).
| BFilePanel() |
BFilePanel(file_panel_mode mode = B_OPEN_PANEL,
BMessenger* target = NULL,
entry_ref *panel_directory = NULL,
uint32 node_flavors = 0,
bool allow_multiple_selection = true,
BMessage *message = NULL,
BRefFilter *filter = NULL,
bool modal = false,
bool hide_when_done = true)The constructor creates a new BFilePanel object and initializes it according to the arguments. The panel isn't displayed until you invoke Show(). The arguments are thoroughly described in "Constructing and Fine-tuning the Panel."
You may notice that some of the default arguments shown here don't jibe with the defaults listed in the section "Constructing and Fine-tuning the Panel". In particular, the node_flavors argument was described as defaulting to B_FILE_NODE, but is shown here as 0. The "Constructing..." descriptions are correct: The default values shown here are caught and converted by the BFilePanel constructor.
|
| ~BFilePanel() |
virtual ~BFilePanel() Destroys the BFilePanel. The object's target and BRefFilter are not touched by this destruction. If the object is currently displaying a file panel, the panel is closed.
|
| GetNextSelectedRef() , Rewind() |
status_t GetNextSelectedRef(entry_ref *ref) void Rewind(void) GetNextSelectedRef() initializes its arguments to point to the "next" ref in the file panel's set of currently selected items. The function returns B_ENTRY_NOT_FOUND when it reaches the end of the list. Rewind() gets you back to the top of the list.
Although you can call these functions anytime you want, they're intended to be used in implementations of the SelectionChanged() hook function.
|
|
GetPanelDirectory() see SetPanelDirectory()
|
Hide() see Show()
|
HidesWhenDone() see SetHideWhenDone()
|
IsShowing() see Show()
|
Messenger() see SetTarget() | |
|
| PanelMode() |
file_panel_mode PanelMode(void) const Returns the object's mode, either B_OPEN_PANEL or B_SAVE_PANEL. The mode is set in the constructor and can't be changed thereafter.
|
| RefFilter() see SetRefFilter() |
|
| Refresh() |
void Refresh(void) Refresh() tells the file panel to re-read the contents of the panel directory, which causes the directory's entries to be re-run through the ref filter.
You don't have to call Refresh() in order to keep the panel in sync with the directory's contents—the directory and file panel are kept in sync automatically.
|
| Rewind() see GetNextSelectedRef() |
|
| SelectionChanged() |
virtual void SelectionChanged(void) This hook function is invoked whenever the user changes the set of selected files. Within your implementation of this function, you iterate over GetNextSelectedRef() to retrieve refs to the currently selected files.
|
| SendMessage() |
virtual void SendMessage(const BMessenger *messenger, BMessage *message) Sends BMessage message to the BHandler targeted by messenger.
See also: BMessenger::SendMessage()
|
| SetButtonLabel() , SetSaveText() |
void SetButtonLabel(file_panel_button which_button, const char *label) void SetSaveText(const char *text) SetButtonLabel() lets you set the label that's displayed in the panel's buttons. The button that a specific invocation affects depends on the value of which_button:
- B_DEFAULT_BUTTON is the Open button for an Open Panel and the Save button for a Save Panel.
- B_CANCEL_BUTTON is the "Cancel" button.
SetSaveText() sets the text that's displayed in the Save Panel's text view (the area in which the user types and confirms a file name).
|
| SetHideWhenDone() , HidesWhenDone() |
void SetHideWhenDone(bool hide_when_done) bool HidesWhenDone(void) const By default, a file panel is hidden when the user confirms or Cancels. You can control this behavior using the SetHideWhenDone() function. If you set hide_when_done to false, the panel remains on the screen; if you specify true, the panel hides when the user confirms or Cancels. Clicking the panel's close box always hides the panel.
HidesWhenDone() returns the current setting of this option: true if the panel hides when the user is done with it or false if it remains on the screen.
|
| SetMessage() |
void SetMessage(BMessage *msg) SetMessage() allows you to set the format of the file panel's notification messages. The message can also be set through the constructor. See "The Target and the Messages it Sees" for more information.
A copy is made of the BMessage, so it is your responsibility to delete msg when you no longer need it.
|
| SetPanelDirectory() , GetPanelDirectory() |
void SetPanelDirectory(BEntry *dirEntry)
void SetPanelDirectory(BDirectory *dirObj)
void SetPanelDirectory(entry_ref *dirRef)
void SetPanelDirectory(const char *dirStr)void GetPanelDirectory(entry_ref *ref) const The SetPanelDirectory() function sets the panel's "panel directory." This is the directory whose contents are displayed in the panel's file list. You can also set the panel directory through the constructor. If you don't supply a directory, the current working directory is used.
GetPanelDirectory() initializes ref to point to the current panel directory. The argument must be allocated.
|
| SetRefFilter() , RefFilter() |
void SetRefFilter(BRefFilter *filter) BRefFilter *RefFilter(void) const Whenever the file panel's panel directory is changed or refreshed (Refresh()), or when a new entry is added to the current panel directory, the "new" entries are run through the panel's "ref filter." The BRefFilter class defines a single boolean hook function called Filter(). The function receives the entries, one-by-one, and can reject specific entries (because they're the wrong file type, for example). Rejected entries are not shown in the panel's file list.
The SetRefFilter() function sets the panel's ref filter. You can also set it through the constructor. Ownership of the filter is not handed to the panel. You mustn't delete the ref filter while the panel is still extant.
RefFilter() returns a pointer to the panel's ref filter.
|
| SetSaveText() see SetButtonLabel() |
|
| SetTarget() , Messenger() |
void SetTarget(BMessenger bellhop) BMessenger Messenger(void) const SetTarget() sets the target of the file panel's notification messages. The target can also be set through the constructor. If you don't set a target, be_app_messenger is used. See the BInvoker class (in the Application Kit) for an explanation of how a BMessenger can be used as a target.
A copy is made of the BMessenger, so it is your responsibility to delete bellhop when you no longer need it.
Messenger() returns (a copy of) the messenger that's used as the file panel's target.
|
| Show() , Hide() , IsShowing() , WasHidden() |
void Show(void) void Hide(void) bool IsShowing(void) const virtual void WasHidden(void) These functions show and hide the file panel, and tell if you the panel is currently showing.
WasHidden() is a hook function that's invoked whenever the user's actions causes the file panel to be hidden. If you call Hide() yourself, WasHidden() is not invoked.
|
| WasHidden() see Show() |
|
| Window() |
BWindow *Window(void) const Returns a pointer to the file panel's window. If you want to mess around with the window's views, see "Modifying the Look of the File Panel."
|
